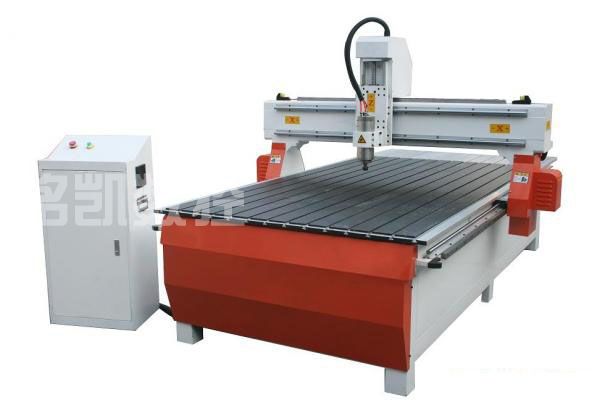

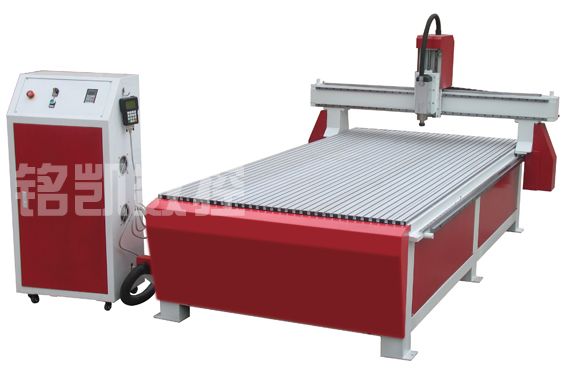

Product introduction

‖Welded structure by thick profiled steel,stabilized under high temperature,ensures minimum distortion, excellent rigidity and powerful strength.
‖Y axis with double motor driving ensures stable and smooth movement of the machine.
‖High precision rack gear transmission ensures fast speed and high accuracy.
‖Imported linear square guide rail ensures high accuracy and maximum work load-bearing.
‖Optimized mechanical and electrical design with well-selected brand parts minimizes breakdown rate.
‖Spindle with high power enables powerful cutting strength.
‖Function of continuous working at stop point by power failure.

Applications
Efficient manufacturing of wooden products,advertising billboard,acrylic cutting,letter mold forming and mass cutting.Also the machine can engrave iron,brass,aluminum,plastic and wood boards and the other non-metal materials.

Parameters

Description	MK-1325
X.Y.Z工作行程Working Area（X*Y*Z）	1300×2500×190mm
最大雕刻速度Max Engraving Speed	20000/min
加工精度Reposition Accuracy	<0.05/300mm
主轴Spindle Power	3.0KW水冷主轴Water Cooling
主轴转速Spindle Speed	6000-24000rpm
刀具直径Tool Diameter	Φ3.175mm,Φ6mm,Φ12.7mm
